HY600SFour axis servo vegetable packing machine

Product description

Hy600s is a full automatic high-speed and multifunctional vegetable packaging machine developed according to market demand. It is suitable for winter melons, such as long bean potatoes, cabbage, cabbage, cabbage, bean curd, yam, lettuce, lettuce, leek, cabbage, coriander, onion, cabbage, onion, green onion, Shanghai green, celery, konjac, onion, ginger, yam, lotus root, garlic, Zizania, and scallion The packing of melon, bitter melon, cucumber, cucurbit, pumpkin, eggplant, pepper, tomato and corn type products automatically print the production date!

Technical parameter

Adjustable range of packaging	L：150-900 W：80-230mm; H：30-150mm。
Packaging speed	10-45 bags / min (different depending on product length and packaging material)
Dimensions	Length 70000mmx width 1003mmx height 1670mm
Belt size	Feed bottom strip length: 5000mm x W 240mm Feed side strip (two strips) length: 2600 x width 90mm Length of reciprocating middle belt: 1000mmx250mm Output belt length: 600X width 250mm Depth of feeding bin: 90mm
Belt material thickness	Original imported food grade wear-resistant and easy to clean PU belt, thickness 1.8x1.2
Sheet metal material	SUS304 × 2.0, box 8mm45 +2mmsus304#
Pipe of support frame	SUS304#2.0
Packing line speed	5m (low speed) -15m (high speed) / minute, frequency conversion speed regulation!
Maximum film width of package	680mm
weight	900KG
Power and voltage	220VAC\50Hz 3.0KW
Thickness of packing material	25-60um
Applicable packing materials	Bopp/pe、Cpp/pe、 Packaging materials suitable for heating sealing, such as cpp/pa, BOPP, CPP anti fog film and color film
Number of films hung	Two rolls of packaging film can be hung simultaneously
Electric height adjustment of cross sealing device	one hundred and fifty
Packing roll diameter	320mm
Waste collection device	Collect 6-12mm diameter waste film into waste collection box to avoid being packed in bag.
Four position reciprocating punch ＜ br / >	The four position reciprocating punch replaces the drive punch, which has fast drilling speed and high efficiency. The ratio of the whole machine to the package is synchronous to prevent the tearing caused by pulling the film during the drilling. 4 holes are drilled at 60mm intervals, with the pore diameter of 6-12mm. If packing the cabbage, 10-12 air holes can be drilled.

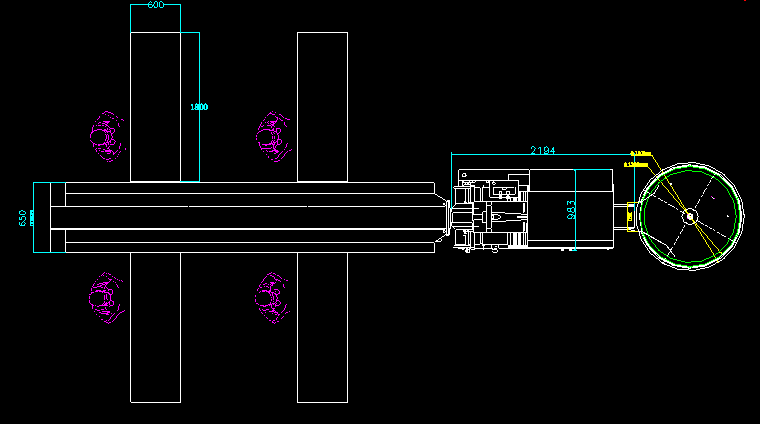

Equipment plan

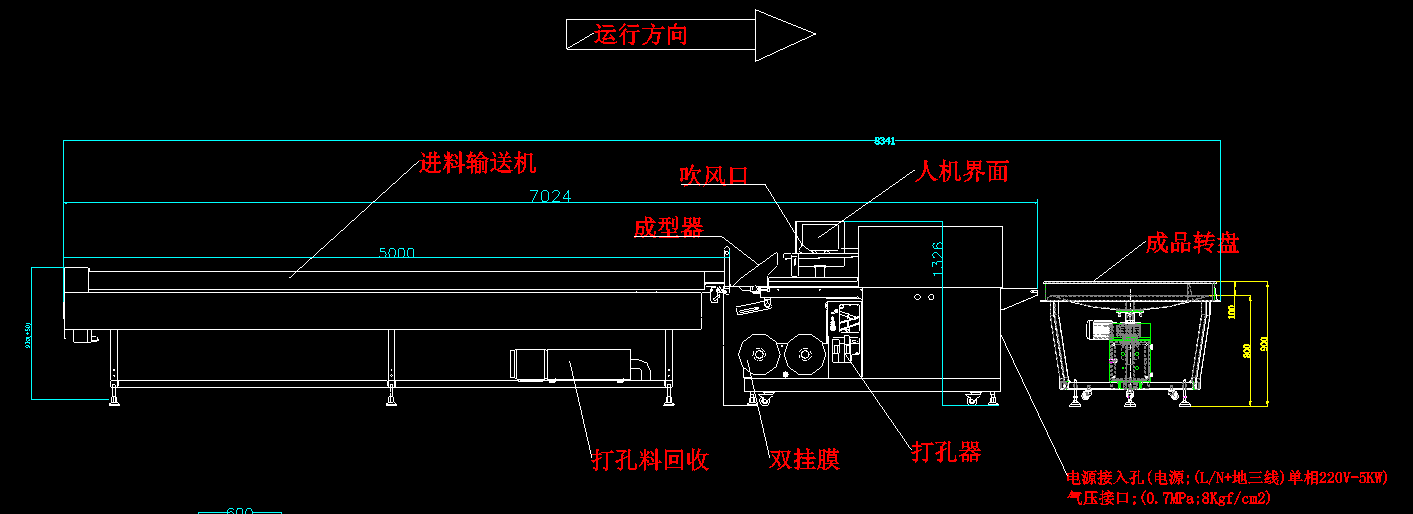

Operation flow: put vegetables into the input conveyor manually on the workbench - "" leaf vegetable packing machine to complete automatic drilling - "" automatic wrapping film è The waste collection - enter the rotary receiving tray
